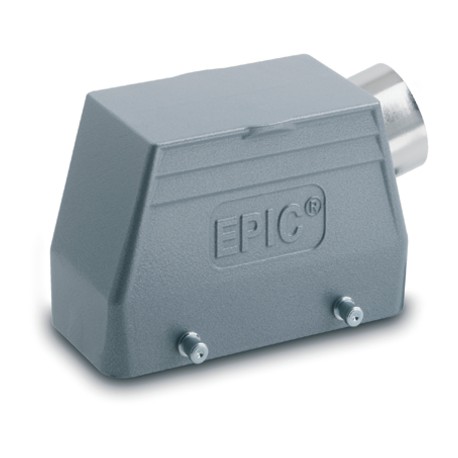

19123000 EPIC H-B 24 TS M32 ZW. HOOD LAPP EPIC H-B 24 TS M32 ZW. HOOD
19123000
19123000
EPIC H-B 24 TS M32 ZW. HOOD
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Enclosing high-density multi-pin contact assemblies, the Lapp 19123000 EPIC H-B 24 TS M32 ZW. HOOD housing for industrial connectors safeguards wiring terminations in automated production systems. Top-entry hoods direct cables cleanly away from panel interfaces while resisting dust and fluid ingress. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust connector housing can withstand temperatures of up to +125 degrees for a short period and is suitable for use in the plastics industry.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- Ideal for many applications due to a wide range of housings and inserts
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Bolts for double lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
