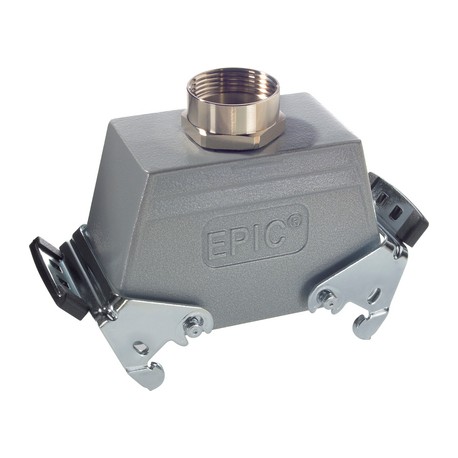

LAPP 19122000 19122000 EPIC H-B 24 TGB M25 N.GEW. HOOD LAPP EPIC H-B 24 TGB M25 N.GEW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19122000 EPIC H-B 24 TGB M25 N.GEW. HOOD LAPP EPIC H-B 24 TGB M25 N.GEW. HOOD

19122000

19122000

EPIC H-B 24 TGB M25 N.GEW. HOOD

LAPP

5 Pcs.

EPIC H-B 24 TGB M25 N.GEW. HOOD EPIC® H-B 24 TGB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a protective housing for industrial connectors, the Lapp 19122000 EPIC H-B 24 TGB M25 N.GEW. HOOD safeguards electrical connection interfaces operating in demanding industrial environments. Protective connector hoods of this type shield multi-pin plugs and sockets against physical damage, airborne debris, and liquid ingress, maintaining reliable circuit integrity across automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing consists of 2 double levers and a direct cable entry and can be supplied with or without a neck.

  • Non-slip ridges for comfortable disconnecting
  • For connection with counterpart with integrated cover
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts
  • Double lever version with 2 levers for increased safety

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Dual levers
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
