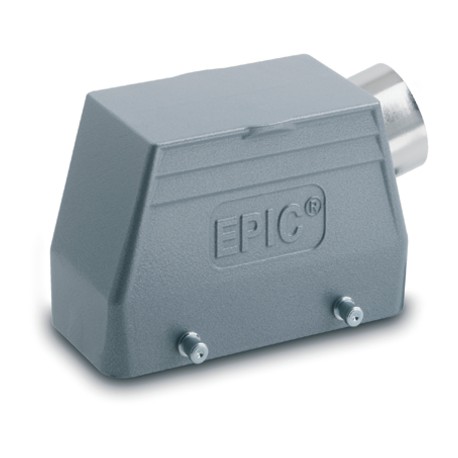

LAPP 19113000 19113000 EPIC H-B 24 TS M25 ZW. HOOD LAPP EPIC H-B 24 TS M25 ZW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19113000 EPIC H-B 24 TS M25 ZW. HOOD LAPP EPIC H-B 24 TS M25 ZW. HOOD

19113000

19113000

EPIC H-B 24 TS M25 ZW. HOOD

LAPP

5 Pcs.

EPIC H-B 24 TS M25 ZW. HOOD EPIC® H-B 24 TS

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The robust connector housing can withstand temperatures of up to +125 degrees for a short period and is suitable for use in the plastics industry.

  • Non-slip ridges for comfortable disconnecting
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Bolts for double lever
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
