19092900 H-B 16 TS-RO M32 ZW. HOOD LAPP H-B 16 TS-RO M32 ZW. HOOD
19092900
19092900
H-B 16 TS-RO M32 ZW. HOOD
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

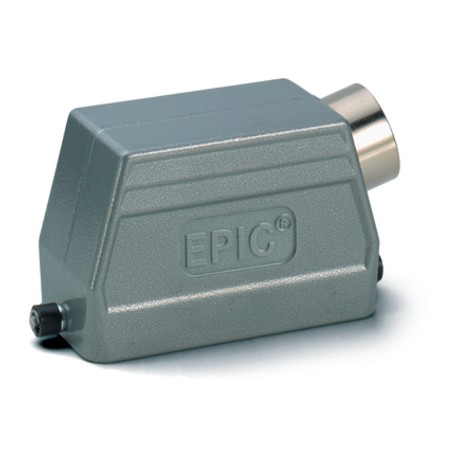

Operating as a protective housing for industrial connectors, the Lapp 19092900 H-B 16 TS-RO M32 ZW. HOOD LAPP H-B 16 TS-RO M32 ZW. HOOD secures and shields multi-conductor interface assemblies. Industrial facilities rely on these housings to prevent connector uncoupling and environmental damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust low housing with a neck has a side cable entry and pivots for a single lever. It is suitable for use in investment construction.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Reels for single lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- UL50 Type 12 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
