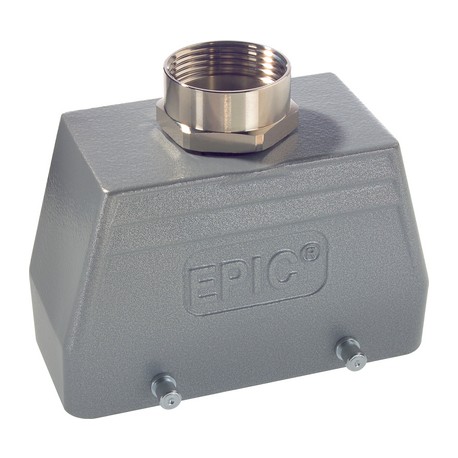

19090000 EPIC H-B 16 TG M32 LAPP EPIC H-B 16 TG M32
19090000
19090000
EPIC H-B 16 TG M32
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An industrial connector hood encloses cable-side termination blocks, protecting wiring connections from dust, moisture, and physical impact within heavy-duty machinery. The Lapp part number 19090000 provides extended interior clearance for complex wiring configurations inside automated systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- High version: More interior space for wiring
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust housing for rectangular connectors with a direct cable entry is suitable for use in lighting and sound systems.
- Non-slip ridges for comfortable disconnecting
- High version: More interior space for wiring
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Bolts for double lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
