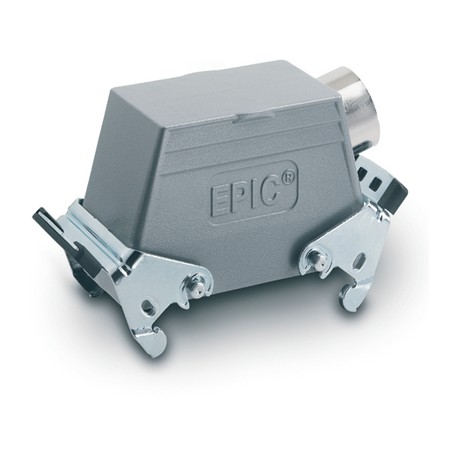

LAPP 19083000 19083000 EPIC H-B 16 TSB M25 ZW. HOOD LAPP EPIC H-B 16 TSB M25 ZW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19083000 EPIC H-B 16 TSB M25 ZW. HOOD LAPP EPIC H-B 16 TSB M25 ZW. HOOD

19083000

19083000

EPIC H-B 16 TSB M25 ZW. HOOD

LAPP

5 Pcs.

EPIC H-B 16 TSB M25 ZW. HOOD EPIC® H-B 16 TSB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosing plug connectors to prevent environmental damage, this robust industrial hood safeguards internal wiring junctions on automated production lines. Components like the Lapp 19083000 maintain secure mechanical locking over electrical contacts exposed to factory pollutants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • NEMA 250, UL50E: 12, 4 (latched)
  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing with 2 double levers and a side cable entry is ideal for lighting and sound system applications.

  • Non-slip ridges for comfortable disconnecting
  • For connection with counterpart with integrated cover
  • NEMA 250, UL50E: 12, 4 (latched)

Benefits

  • The housing standard. Wide choice for all applications
  • Double lever version with 2 levers for increased safety

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Dual levers
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
