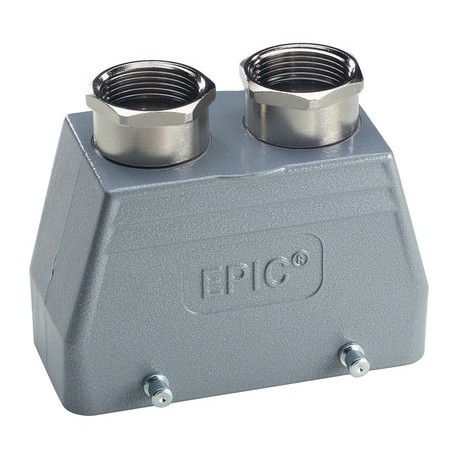

LAPP 19080500 19080500 EPIC H-B 16 TG 2XM25 ZW./SO HOOD LAPP EPIC H-B 16 TG 2XM25 ZW./SO HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19080500 EPIC H-B 16 TG 2XM25 ZW./SO HOOD LAPP EPIC H-B 16 TG 2XM25 ZW./SO HOOD

19080500

19080500

EPIC H-B 16 TG 2XM25 ZW./SO HOOD

LAPP

5 Pcs.

EPIC H-B 16 TG 2XM25 ZW./SO HOOD EPIC® H-B 16 TG 2X

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting vulnerable wiring joints from environmental exposure, this Lapp 19080500 EPIC H-B 16 TG 2XM25 ZW./SO HOOD LAPP EPIC H-B 16 TG 2XM25 ZW./SO HOOD acts as a robust industrial connector housing. These protective structures are standard in machine building and industrial automation setups to ensure secure, stable signal and power routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • The housing standard. Wide choice for all applications

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Bolts for double lever
  • 2 straight cable entries
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
