View larger
Images are for illustrative purposes only. Please refer to data sheet for details

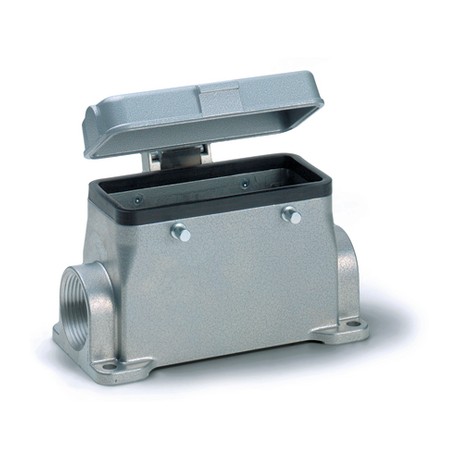

19076000 H-B 16 SDR-BO M25 ZW.BOX MOUNT BASE LAPP H-B 16 SDR-BO M25 ZW.BOX MOUNT BASE
19076000
19076000
H-B 16 SDR-BO M25 ZW.BOX MOUNT BASE
LAPP
5 Pcs.
H-B 16 SDR-BO M25 ZW.BOX MOUNT BASE
EPIC® H-B 16 SDR-BO
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The robust housing for use in lighting and sound system applications consists of pivots for a double lever, a metal cap and a cable entry.
- Metal lid with sturdy hinge
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Surface-mount base, low version
- Bolts for double lever
- 1 cable entry
- Metal cover
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
IP 40 (cover closed) - NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
