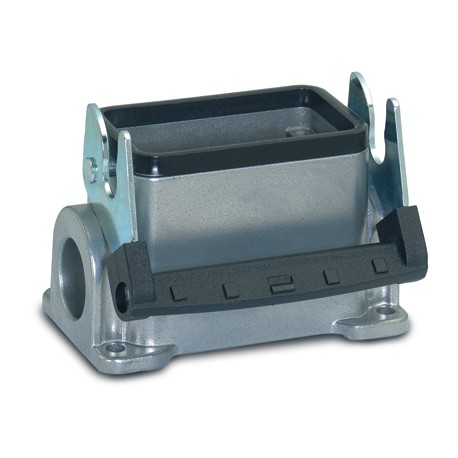

LAPP 19074900 19074900 H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE LAPP H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19074900 H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE LAPP H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE

19074900

19074900

H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE EPIC® H-B 16 SGR-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a secure fixed termination point, the Lapp 19074900 H-B 16 SGR-LB M25 ZW. BOX MOUNT BASE is a heavy-duty industrial connector housing designed to manage complex wiring interfaces on machinery. Box mount bases offer stable surface attachment for incoming power or control cables in industrial automation setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The low metal housing for rectangular connectors can be used not only in investment construction, but also in the plastics industry.

  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Protection rating UL50E tested

Benefits

  • The housing standard. Wide choice for all applications

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Single lever
  • 1 cable entry

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • UL50 Type 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
