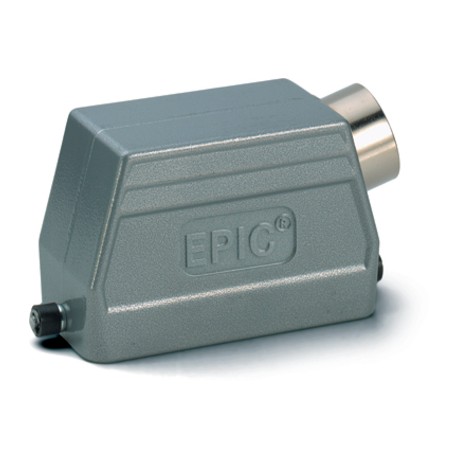

LAPP 19042900 19042900 EPIC H-B 10 TS-RO M20 ZW LAPP EPIC H-B 10 TS-RO M20 ZW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19042900 EPIC H-B 10 TS-RO M20 ZW LAPP EPIC H-B 10 TS-RO M20 ZW

19042900

19042900

EPIC H-B 10 TS-RO M20 ZW

LAPP

10 Pcs.

EPIC H-B 10 TS-RO M20 ZW EPIC® H-B 10 TS-RO

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting delicate internal wiring junctions, this Lapp part number 19042900 industrial connector housing provides a rugged enclosure for multi-pole electrical inserts. Housings of this type are deployed across manufacturing facilities and machine building environments to shield connections against physical impact and environmental hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The low connector housing with a side cable entry is suitable for use in lighting and sound systems.

  • Non-slip ridges for comfortable disconnecting
  • Protection rating UL50E tested

Benefits

  • The smallest housing with single and double lever. The right housing is available for every application

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Reels for single lever
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
