View larger

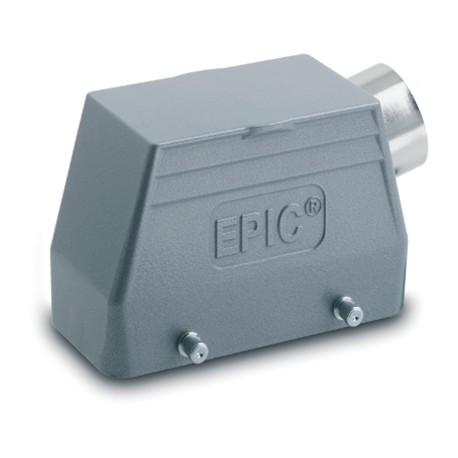

19042100 EPIC H-B 10 TS M25 ZW LAPP EPIC H-B 10 TS M25 ZW
19042100
19042100
EPIC H-B 10 TS M25 ZW
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A cable hood protects connector inserts and wire terminations from environmental factors at the entry point of heavy electrical cable assemblies. The Lapp 19042100 enclosure ensures secure mechanical retention and prevents strain on internal wiring pins. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
More info
▲The robust low metal housing has a side cable entry, pivots for a double lever and is supplied with a neck.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- The smallest housing with single and double lever. The right housing is available for every application
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Bolts for double lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
