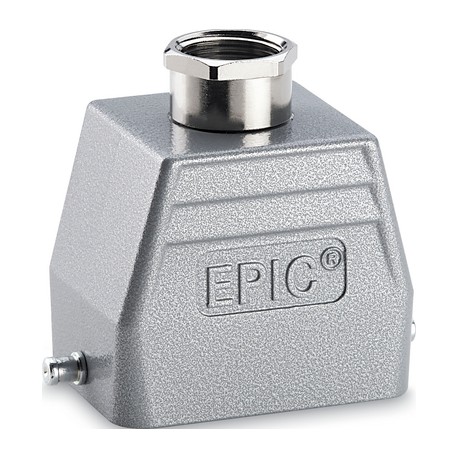

LAPP 19021000 19021000 EPIC H-B 6 TG M25 LAPP EPIC H-B 6 TG M25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19021000 EPIC H-B 6 TG M25 LAPP EPIC H-B 6 TG M25

19021000

19021000

EPIC H-B 6 TG M25

LAPP

10 Pcs.

EPIC H-B 6 TG M25 EPIC® H-B 6 TG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as an industrial connector housing, part number 19021000 by Lapp shields high-density plug-in connectors from mechanical wear and tear. Connector shells route cable entries neatly into control panels while ensuring mated assemblies stay locked together during operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • High version: More interior space for wiring
  • Housing: powder-coated aluminium alloy, grey
  • Bolts: steel, coated
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing is the smallest body in the H-B series and is suitable for inserts with outstanding electrical properties.

  • Non-slip ridges for comfortable disconnecting
  • High version: More interior space for wiring
  • Protection rating UL50E tested

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Hood, low version
  • Bolts for single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Bolts: steel, coated

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
