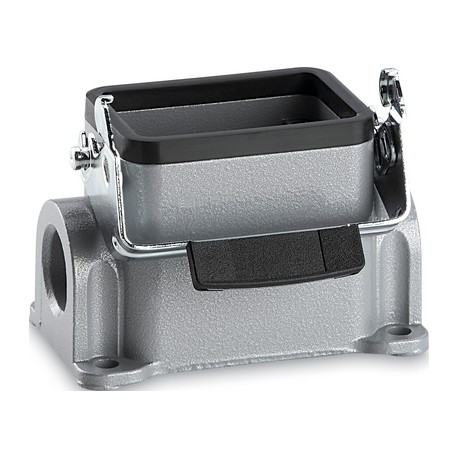

LAPP 19005000 19005000 H-B 6 SGR M20 ZW. BOX MOUNT BASE LAPP H-B 6 SGR M20 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

19005000 H-B 6 SGR M20 ZW. BOX MOUNT BASE LAPP H-B 6 SGR M20 ZW. BOX MOUNT BASE

19005000

19005000

H-B 6 SGR M20 ZW. BOX MOUNT BASE

LAPP

10 Pcs.

H-B 6 SGR M20 ZW. BOX MOUNT BASE EPIC® H-B 6 SGR-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 19005000 H-B 6 SGR M20 ZW. BOX MOUNT BASE functions as a box mount base housing for industrial connectors, designed to anchor cable junctions securely onto machine frames. Box mounting bases offer dependable physical protection and tight sealing around connector inserts, preventing dust and moisture ingress in factory environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Single lever
  • 1 cable entry

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
