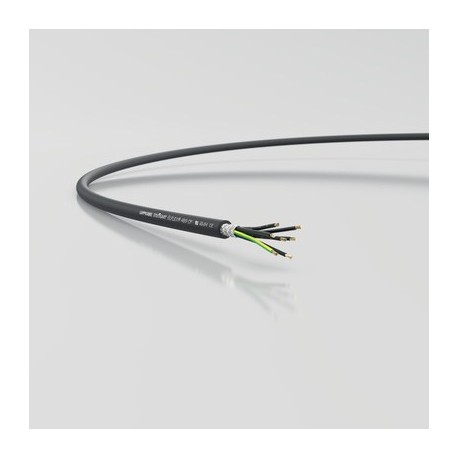

1321105 LAPP ÖLFLEX 409 CP 5G0,75
1321105
1321105
LAPP
1 m.
Automation > DC-power supply
ÖLFLEX PUR/TPE numbered cores
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed for flexible machine integration, the Lapp 1321105 control cable transmits command signals reliably across automated plant machinery. Industrial multi-core cabling is routinely specified for moving machine parts and fixed routing where mechanical resilience matters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Core insulation: special PVC
- Sheath colour: black (similar RAL 9005)
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
- U0/U: 300/500 V
- UL/CSA: 1000 V
- Occasional flexing: -5°C to +70°C (UL: +80°C)
- Fixed installation: -40°C to +80°C
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
More info
▲Benefits
- Increased durability under harsh conditions thanks to robust PUR outer sheath
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers
- Copper braiding screens the cable against
electromagnetic interference
Application range
- Appliance and apparatus construction
- Industrial machinery and machine tools
- Measurement, control and electrical applications
- Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
- Under consideration of the temperature range also suitable for outdoor use
Product features
- High oil-resistance
- Flame-retardant
- Abrasion and notch-resistant
- UV-resistant according to ISO 4892-2
- Resistant to hydrolysis and microbes
Norm references / Approvals
- UL AWM Style 20234
- cUL AWM I/II A/B
- UL File No. E63634
Product Make-up
- Fine-wire, bare copper conductor
- Core insulation: special PVC
- Cores twisted in layers
- Plastic foil wrapping
- Tinned-copper braiding
- Special polyurethane outer sheath (PUR)
- Sheath colour: black (similar RAL 9005)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
- UL/CSA: 1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C (UL: +80°C)
- Fixed installation: -40°C to +80°C
