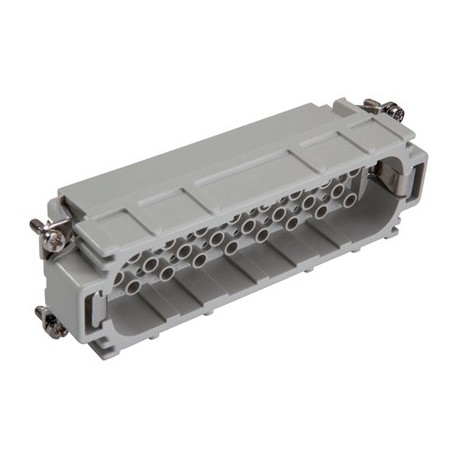

H-D 64 SCG MALE INSERT (A) EPIC® H-D 64 stamped

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Multi-pole signal distribution in industrial automation environments relies on components like the Lapp 11270000 H-D 64 SCG MALE INSERT (A). Stamped male contact inserts provide secure pin connections for complex cable assemblies housed within rugged rectangular connectors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 250 V UL: 250 V
  • IEC: 10 A UL: 10 A
  • Crimp termination: 0.14 - 2.5 mm²
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The connector insert with 64 pressed contacts is suitable for rectangular connectors in lighting and sound systems.

  • for automated production with crimping machine
  • Suitable for processing with contacts on reel
  • Made in Europe

Benefits

  • Inserts of the connector series H-D are designed for applications in which a high number of contacts are required.

Application range

  • Plant engineering
  • Light & sound technology

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 250 V
    UL: 250 V

Rated impulse voltage

  • 2.5 kV

Rated current (A)

  • IEC: 10 A
    UL: 10 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 64 + PE

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Cycle of mechanical operation

  • 100

Certifications

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
