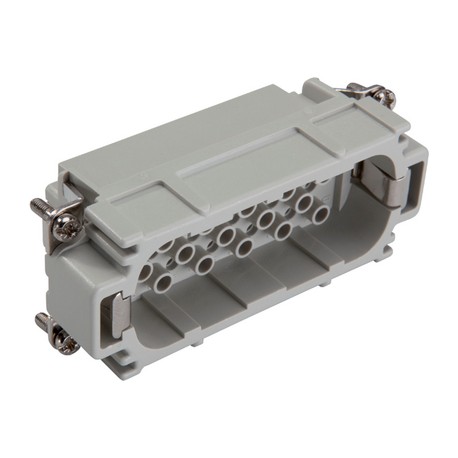

LAPP 11265200 11265200 H-D 40 SCM MALE INSERT LAPP H-D 40 SCM MALE INSERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11265200 H-D 40 SCM MALE INSERT LAPP H-D 40 SCM MALE INSERT

11265200

11265200

H-D 40 SCM MALE INSERT

LAPP

10 Pcs.

H-D 40 SCM MALE INSERT EPIC® H-D 40 machined

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Lapp 11265200 H-D 40 SCM male insert, this machined contact component is built for high-pin-count rectangular industrial connectors. These inserts are routinely selected for complex control panels to organize extensive wiring networks efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 250 V UL: 250 V
  • IEC: 10 A UL: 10 A
  • Crimp termination: 0.14 - 2.5 mm²
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The connector insert has 40 machined contacts and it is the ideal option for use in all applications requiring a high number of contacts.

  • For machined contacts for fast processing with the crimping tool
  • Made in Europe

Benefits

  • Inserts of the connector series H-D are designed for applications in which a high number of contacts are required.

Application range

  • Plant engineering
  • Light & sound technology

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 250 V
    UL: 250 V

Rated impulse voltage

  • 2.5 kV

Rated current (A)

  • IEC: 10 A
    UL: 10 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 40 + PE

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Cycle of mechanical operation

  • 100

Certifications

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
