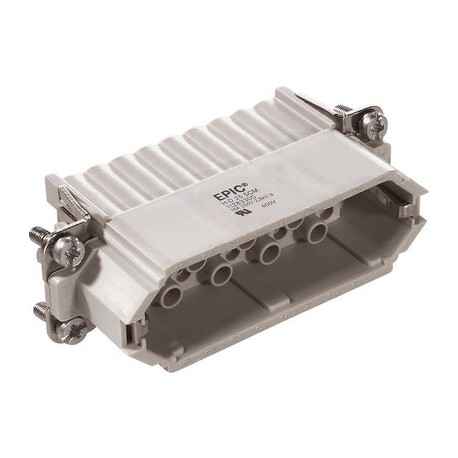

LAPP 11260000 11260000 H-D 25 SCG MALE INSERT (A) LAPP H-D 25 SCG MALE INSERT (A) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11260000 H-D 25 SCG MALE INSERT (A) LAPP H-D 25 SCG MALE INSERT (A)

11260000

11260000

H-D 25 SCG MALE INSERT (A)

LAPP

5 Pcs.

H-D 25 SCG MALE INSERT (A) EPIC® H-D 25 stamped

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The insert for rectangular connectors with pressed contacts is suitable for applications requiring a high number of contacts, such as in control systems.

  • for automated production with crimping machine
  • Suitable for processing with contacts on reel
  • Made in Europe

Benefits

  • Inserts of the connector series H-D are designed for applications in which a high number of contacts are required.

Application range

  • Machine and equipment manufacturing
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 250 V
    UL: 250 V

Rated impulse voltage

  • 2.5 kV

Rated current (A)

  • IEC: 10 A
    UL: 10 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 25 + PE

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Cycle of mechanical operation

  • 100

Certifications

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
