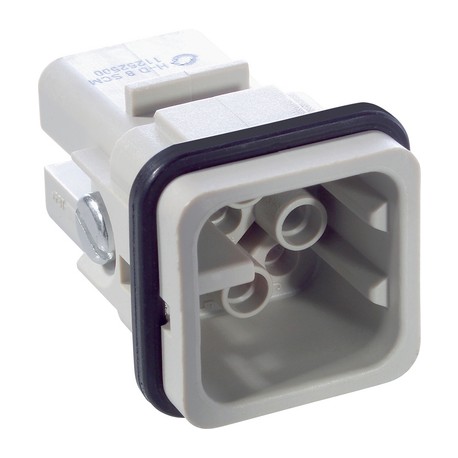

11252500 H-D 8 SCM MALE INSERT LAPP H-D 8 SCM MALE INSERT
11252500
11252500
H-D 8 SCM MALE INSERT
LAPP
10 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a pin-side termination block, the Lapp 11252500 H-D 8 SCM MALE INSERT bridges multi-wire control bundles within modular industrial connector housings. Such pin inserts organize and secure signal lines across automated processing plants and industrial panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- IEC: 24 V (AC)/60 V (DC) metal housing; 250 V thermoplastic housing
- UL: 250 V
- IEC: 10 A UL: 10 A
- Crimp termination: 0.14 - 2.5 mm²
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲The powerful and compact standard insert has PE contacts with screw termination and is suitable, for example, for control systems.
- Compact, powerful standard insert
- For machined contacts for fast processing with the crimping tool
- Made in Germany
Benefits
- Small, high-performance connector
- High performance crimping contacts
- PE contact with screw connection
Application range
- Machine and equipment manufacturing
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 24 V (AC)/60 V (DC) metal housing; 250 V thermoplastic housing;
UL: 250 V
Rated impulse voltage
- 2.5 kV
Rated current (A)
- IEC: 10 A
UL: 10 A
Pollution degree
- 3
Flammability
- UL94 V-0
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver/gold-plated
Number of contacts
- 8
Termination methods
- Crimp termination: 0.14 - 2.5 mm²
Material
- PBT Polyester
Cycle of mechanical operation
- 100
Certifications
Temperature range
- -40°C to +100°C, short-term up to +125°C
