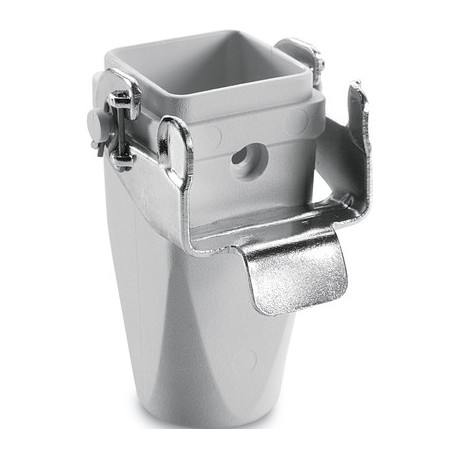

LAPP 10620300 10620300 H-A 3 TGVB 11 KPL. CABLE COUPLER HOOD LAPP H-A 3 TGVB 11 KPL. CABLE COUPLER HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10620300 H-A 3 TGVB 11 KPL. CABLE COUPLER HOOD LAPP H-A 3 TGVB 11 KPL. CABLE COUPLER HOOD

10620300

10620300

H-A 3 TGVB 11 KPL. CABLE COUPLER HOOD

LAPP

10 Pcs.

H-A 3 TGVB 11 KPL. CABLE COUPLER HOOD EPIC® H-A 3 TGVB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A thermoplastic cable coupler hood joins mating connector inserts together in mid-cable runs, protecting electrical splices from environmental hazards. It provides insulated housing for modular wiring harnesses deployed throughout manufacturing facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • thermoplastic, grey, black Lever: zinc-plated steel
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust plastic cable coupler hood for rectangular connectors with a direct cable entry and one lever is ideal for use in control systems.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version. For power supply in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Cable coupler hood
  • 1 lever
  • Straight cable entry
  • Versions with / without cable gland

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • thermoplastic, grey, black
    Lever: zinc-plated steel

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
