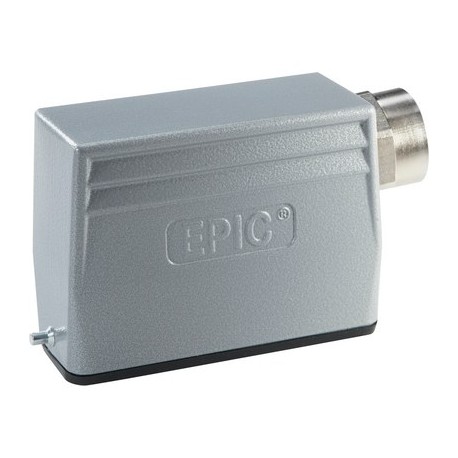

LAPP 10564000 10564000 EPIC H-A 16 TS 16 ZW. HOOD LAPP EPIC H-A 16 TS 16 ZW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10564000 EPIC H-A 16 TS 16 ZW. HOOD LAPP EPIC H-A 16 TS 16 ZW. HOOD

10564000

10564000

EPIC H-A 16 TS 16 ZW. HOOD

LAPP

5 Pcs.

EPIC H-A 16 TS 16 ZW. HOOD EPIC® H-A 16 TS

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a protective enclosure for pluggable wiring elements, the Lapp 10564000 EPIC H-A 16 TS 16 ZW. HOOD LAPP EPIC H-A 16 TS 16 ZW. HOOD acts as an industrial connector hood. These assemblies protect sensitive terminal inserts from airborne debris and physical wear within control panels and automated machinery layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • Small and compact, for applications with high number of contacts

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Hood, low version
  • Bolts for single lever
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
