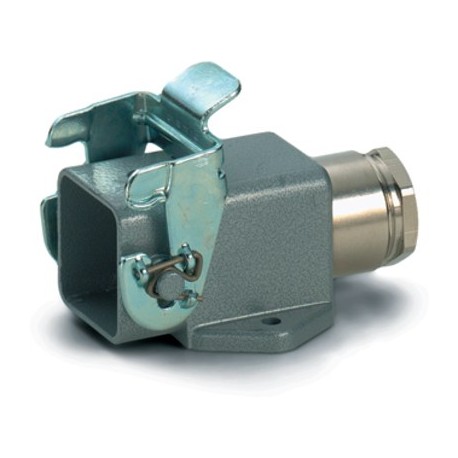

LAPP 10512700 10512700 H-A 3 MAGSV 11 ZW. BOX MOUNT BASE LAPP H-A 3 MAGSV 11 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10512700 H-A 3 MAGSV 11 ZW. BOX MOUNT BASE LAPP H-A 3 MAGSV 11 ZW. BOX MOUNT BASE

10512700

10512700

H-A 3 MAGSV 11 ZW. BOX MOUNT BASE

LAPP

10 Pcs.

H-A 3 MAGSV 11 ZW. BOX MOUNT BASE EPIC® H-A 3 AGSV

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Facilitating wall-mounted panel entry points for heavy-duty electrical wiring, the Lapp 10512700 H-A 3 MAGSV 11 ZW. BOX MOUNT BASE acts as a secure receptacle for industrial connector inserts. Surface mounting bases provide stable mechanical interfaces where cables transition into enclosures across machinery and control desks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated zinc die-casting, grey Lever: zinc-plated steel Sealing: NBR
  • Housing: grey thermoplastic, black Lever: zinc-plated steel Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust compact base housing consists of one lever and a cable entry and is ideal for supplying power in restricted spaces.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version for safe connections in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Surface-mount base
  • 1 lever
  • 1 cable entry
  • Versions with / without cable gland

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Housing: grey thermoplastic, black
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
