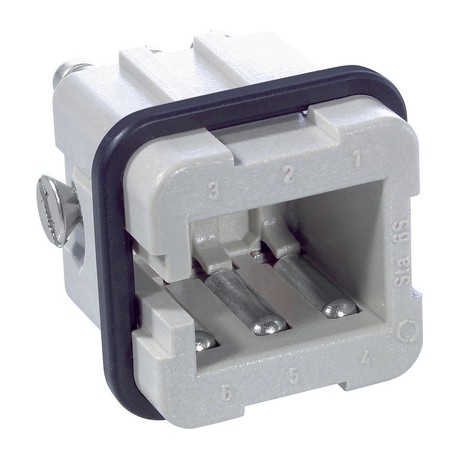

LAPP 10488100 10488100 EPIC STA 6 FS LAPP EPIC STA 6 FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10488100 EPIC STA 6 FS LAPP EPIC STA 6 FS

10488100

10488100

EPIC STA 6 FS

LAPP

10 Pcs.

EPIC STA 6 FS EPIC® STA 6 Screw termination

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for compact connection interfaces, the Lapp 10488100 industrial contact insert provides secure terminal blocks for low-voltage circuits. Technicians incorporate these parts into control units and measurement systems to maintain orderly wiring structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 24 V AC, 60 V DC UL: 48 V CSA: 48 V
  • IEC: 10 A UL: 10 A CSA: 10 A
  • Screw termination: 0.5 - 1.5 mm²
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The insert with screw termination is a tried-and-tested choice thanks to its strong contact springs. It can be used, for example, in control cabinets.

  • For reliable signal transmission in harsh environmental conditions
  • Mechanically robust spring contacts
  • Made in Germany

Benefits

  • good contact due to the strong contact springs.
  • The proven STA inserts with spring contacts

Application range

  • Control systems
  • Rack technology
  • Electronic laboratory

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 24 V AC, 60 V DC
    UL: 48 V
    CSA: 48 V

Rated current (A)

  • IEC: 10 A
    UL: 10 A
    CSA: 10 A

Pollution degree

  • 2

Contact resistance

  • < 3 mOhm

Contacts

  • Copper alloy, tinned

Number of contacts

  • 6

Termination methods

  • Screw termination: 0.5 - 1.5 mm²

Stripping length (mm)

  • 5

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C up to +80°C
