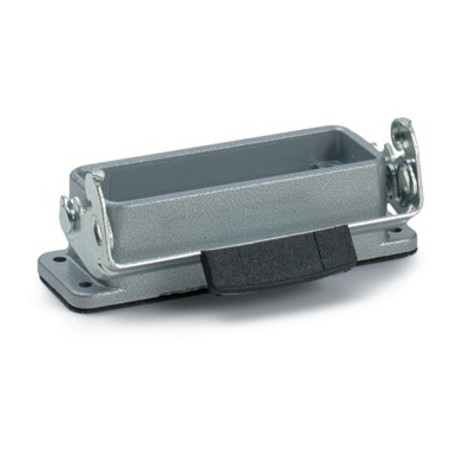

LAPP 10462000 10462000 H-A 16 AG PANEL MOUNT BASE LAPP H-A 16 AG PANEL MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10462000 H-A 16 AG PANEL MOUNT BASE LAPP H-A 16 AG PANEL MOUNT BASE

10462000

10462000

H-A 16 AG PANEL MOUNT BASE

LAPP

5 Pcs.

H-A 16 AG PANEL MOUNT BASE EPIC® H-A 16 AG-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a protective housing for industrial connectors, the Lapp 10462000 H-A 16 AG PANEL MOUNT BASE LAPP H-A 16 AG PANEL MOUNT BASE offers a reliable bulkhead mounting point for cable assemblies on machinery, control cabinets, and junction boxes. Panel mount bases anchor multi-pin connector interfaces securely to enclosure walls, shielding internal contacts from physical damage, dust ingress, and harsh operational environments.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • Small and compact, for applications with high number of contacts

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • H-A case: Wall base
  • Single lever
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
