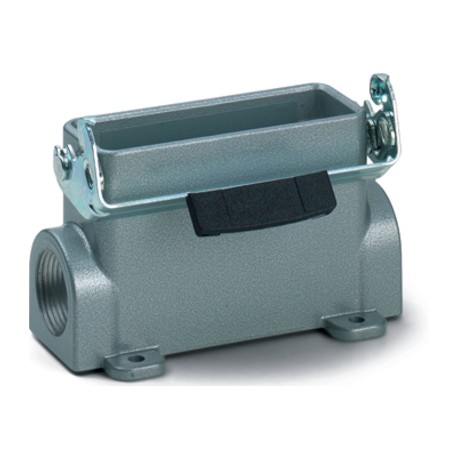

LAPP 10448100 10448100 H-A 10 SGR 16 ZW. BOX MOUNT BASE LAPP H-A 10 SGR 16 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10448100 H-A 10 SGR 16 ZW. BOX MOUNT BASE LAPP H-A 10 SGR 16 ZW. BOX MOUNT BASE

10448100

10448100

H-A 10 SGR 16 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-A 10 SGR 16 ZW. BOX MOUNT BASE EPIC® H-A 10 SGR-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The robust compact metal housing is ideal for use in rectangular connectors, for example in electronic laboratories.

Protection rating UL50E tested

Benefits

  • Small and space-saving for narrow available space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Surface-mount base
  • Single lever
  • 1 cable entry

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
