View larger
Images are for illustrative purposes only. Please refer to data sheet for details

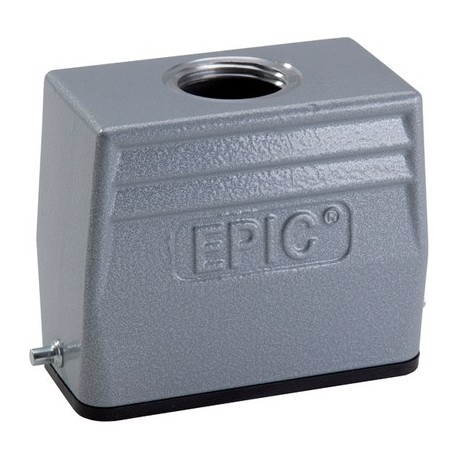

10446000 EPIC H-A 10 TG 13.5 ZW.TUELLENGEHAEUSE LAPP EPIC H-A 10 TG 13.5 ZW. HOOD
10446000
10446000
EPIC H-A 10 TG 13.5 ZW.TUELLENGEHAEUSE
LAPP
5 Pcs.
EPIC H-A 10 TG 13.5 ZW. HOOD
EPIC® H-A 10 TG
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The low hood has pivots for a single lever and a direct cable entry. It is suitable for use in electronic laboratories.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
- High version: More interior space for wiring
Benefits
- Small and space-saving for narrow available space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Hood, low version
- Bolts for single lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
