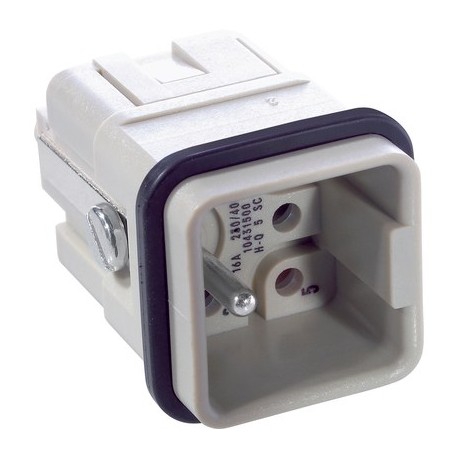

LAPP 10431500 10431500 H-Q 5 SC MALE INSERT LAPP H-Q 5 SC MALE INSERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10431500 H-Q 5 SC MALE INSERT LAPP H-Q 5 SC MALE INSERT

10431500

10431500

H-Q 5 SC MALE INSERT

LAPP

10 Pcs.

H-Q 5 SC MALE INSERT EPIC® H-Q 5

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for compact industrial connector housings, the Lapp 10431500 H-Q 5 SC male insert offers a crimp-terminated pin block for high-density wiring. Technicians deploy these inserts to streamline electrical pathways in commercial machinery, sensor networks, and modular electrical panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 230 V / 400 V UL: 600 V CSA: 600 V
  • IEC: 16 A UL: 16 A CSA: 16 A
  • Crimp termination: 0.5 - 2.5 mm²
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The compact and powerful standard insert is a favourite thanks to its cost-saving crimping contact.

  • Compact, powerful standard insert
  • Space saving, crimping contact
  • Made in Europe

Benefits

  • High performance crimping contacts
  • PE contact with screw connection

Application range

  • Machine and equipment manufacturing
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 230 V / 400 V
    UL: 600 V
    CSA: 600 V

Rated impulse voltage

  • 4 kV

Rated current (A)

  • IEC: 16 A
    UL: 16 A
    CSA: 16 A

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 5 + PE

Termination methods

  • Crimp termination: 0.5 - 2.5 mm²

Material

  • PBT Polyester

Cycle of mechanical operation

  • 100

Temperature range

  • -40°C to +100°C, short-term up to +125°C
