10424500 H-A 3 MAGSV 11 KPL. BOX MOUNT BASE LAPP H-A 3 MAGSV 11 KPL. BOX MOUNT BASE
10424500
10424500
H-A 3 MAGSV 11 KPL. BOX MOUNT BASE
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

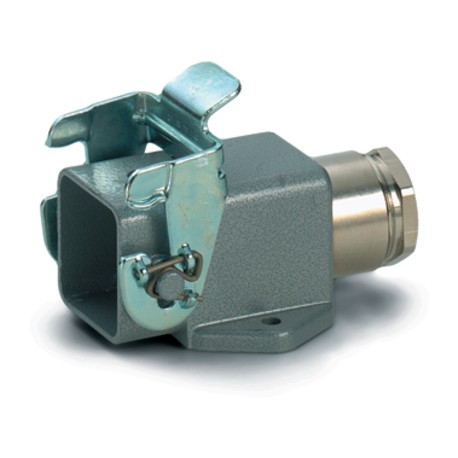

The Lapp 10424500 H-A 3 MAGSV 11 KPL. BOX MOUNT BASE is a compact housing for industrial connectors designed for surface-mounted electrical routing on machine frames and control panels. Box mounting bases provide a stable foundation for plug-and-socket cable assemblies, anchoring the connection point securely while shielding interior terminals from ambient factory hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated zinc die-casting, grey
- Lever: zinc-plated steel
- Sealing: NBR
- Housing: grey thermoplastic, black
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲Benefits
- Housing in plastic or metal version for safe connections in the smallest possible space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Surface-mount base
- 1 lever
- 1 cable entry
- Versions with / without cable gland
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated zinc die-casting, grey
Lever: zinc-plated steel
Sealing: NBR - Housing: grey thermoplastic, black
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
