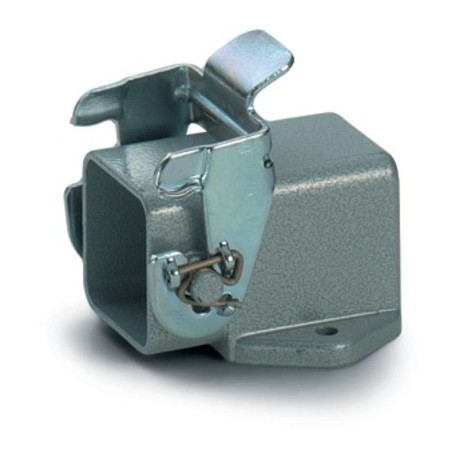

10423500 EPIC H-A 3 MAGS PANEL MOUNT BASE LAPP EPIC H-A 3 MAGS PANEL MOUNT BASE
10423500
10423500
EPIC H-A 3 MAGS PANEL MOUNT BASE
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A panel mount base provides a stable foundation for mounting modular electrical connectors directly onto control cabinet panels or machine housings. It creates a secure receptacle that organizes multi-conductor wiring in industrial control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- H-A case: Wall base
- Included: flat gasket
- Housing: powder-coated zinc die-casting, grey Lever: zinc-plated steel Sealing: NBR
- Housing: grey thermoplastic, black Lever: zinc-plated steel Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust angular housing for placement in rectangular connectors can be used, for example, in electronic laboratories.
- Lightweight, chemically resistant plastic housing
- Protection rating UL50E tested
Benefits
- Housing in plastic or metal version. For power supply in the smallest possible space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- H-A case: Wall base
- 1 lever
- Angled version
- Included: flat gasket
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated zinc die-casting, grey
Lever: zinc-plated steel
Sealing: NBR - Housing: grey thermoplastic, black
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
