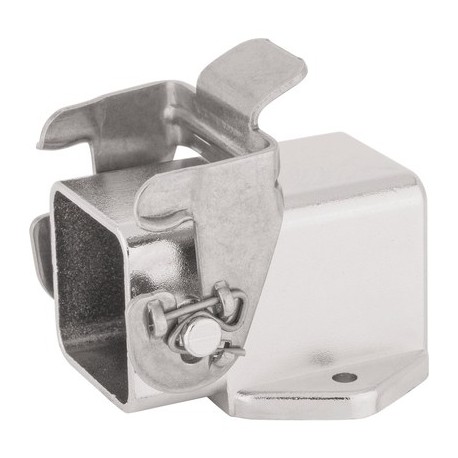

LAPP 10423203 10423203 ULTRA H-A 3 AGSV OPEN LAPP EPIC ULTRA H-A 3 AGSV open View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10423203 ULTRA H-A 3 AGSV OPEN LAPP EPIC ULTRA H-A 3 AGSV open

10423203

10423203

ULTRA H-A 3 AGSV OPEN

LAPP

10 Pcs.

EPIC ULTRA H-A 3 AGSV open

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This ULTRA H-A 3 AGSV open connector housing from Lapp protects compact industrial plug assemblies against harsh conditions and contaminants. Protective hoods and bases are standard across factory automation lines to prevent connector degradation caused by workshop debris and fluids. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: nickel-plated zinc diecasting
  • Lever: stainless steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4, 4X (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

EPIC® Rectangular connector housing EMC protection, corrosion resistant, UL50E, Nema250

  • EMC protection
  • Corrosion-resistant
  • Made in Germany

Benefits

  • Optimum, low-resistance 360° screening
  • All-purpose due to high corrosion resistance and high environmental protection.
  • Space-saving due to compact dimensions
  • High mechanical and chemical resistance

Application range

  • In EMC-sensitive environments
  • For fixed and flexible applications (e.g. machinery building, wind turbines)
  • Construction machinery
  • Electric motor manufacturing

Product features

  • Panel-mount base with open base, side cable entry and additional side M20 thread
  • Resistance to cyclic salt spray is tested according to IEC 68-2-52, severity level 2
  • Salt spray testing according to DIN EN ISO 9227, method NSS, period of test 480 hours
  • Corrosion-resistant according to DIN EN 6988
  • Delivery including stainless steel screw for the inserts

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: nickel-plated zinc diecasting
    Lever: stainless steel
    Sealing: NBR

Protection rating

  • IP 65
  • NEMA 250, UL50E: 12, 4, 4X (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
