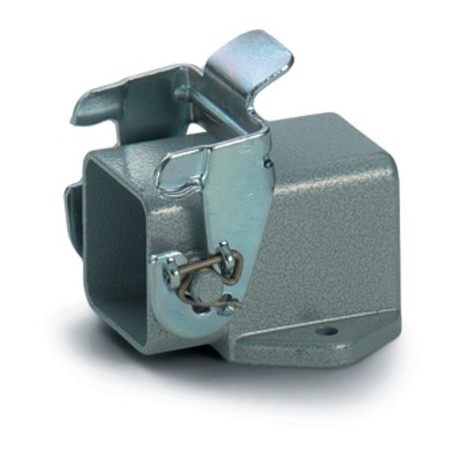

LAPP 10423100 10423100 EPIC H-A 3 AGS PANEL MOUNT BASE BK LAPP EPIC H-A 3 AGS PANEL MOUNT BASE BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10423100 EPIC H-A 3 AGS PANEL MOUNT BASE BK LAPP EPIC H-A 3 AGS PANEL MOUNT BASE BK

10423100

10423100

EPIC H-A 3 AGS PANEL MOUNT BASE BK

LAPP

10 Pcs.

EPIC H-A 3 AGS PANEL MOUNT BASE BK EPIC® H-A 3 AGS

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a flush installation base, this Lapp 10423100 EPIC H-A 3 AGS PANEL MOUNT BASE BK anchors modular plug connectors directly to equipment surfaces or control panels. Panel mount bases provide a rigid structural interface that facilitates straightforward cable connection and disconnection routines during maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: powder-coated zinc die-casting, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Housing: grey thermoplastic, black
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust angular housing for placement in rectangular connectors can be used, for example, in electronic laboratories.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version. For power supply in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • H-A case: Wall base
  • 1 lever
  • Angled version
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Housing: grey thermoplastic, black
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
