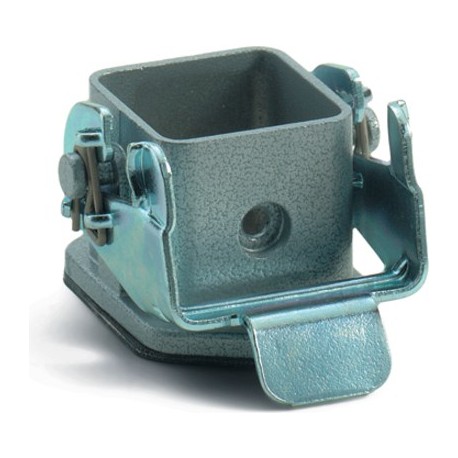

LAPP 10422000 10422000 EPIC H-A 3 AG PANEL MOUNT BASE LAPP EPIC H-A 3 AG PANEL MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10422000 EPIC H-A 3 AG PANEL MOUNT BASE LAPP EPIC H-A 3 AG PANEL MOUNT BASE

10422000

10422000

EPIC H-A 3 AG PANEL MOUNT BASE

LAPP

10 Pcs.

EPIC H-A 3 AG PANEL MOUNT BASE EPIC® H-A 3 AG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a compact panel mount base, the Lapp 10422000 EPIC H-A 3 AG PANEL MOUNT BASE provides a flush mounting point for plug inserts on control enclosures. Panel bases allow engineers to create modular inputs and outputs on electrical cabinets and terminal boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: powder-coated zinc die-casting, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Housing: grey thermoplastic, black
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact plastic or metal housing for rectangular connectors is ideal for use in restricted spaces.

  • Lightweight, chemically resistant plastic housing
  • Protection rating UL50E tested

Benefits

  • Housing in plastic or metal version for safe connections in the smallest possible space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • H-A case: Wall base
  • 1 lever
  • Anbaugehäuse mit Deckel (mit Dichtung,für Buchseneinsätze)
  • Panel-mount base, flat gasket included (version with open base)
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated zinc die-casting, grey
    Lever: zinc-plated steel
    Sealing: NBR
  • Housing: grey thermoplastic, black
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
