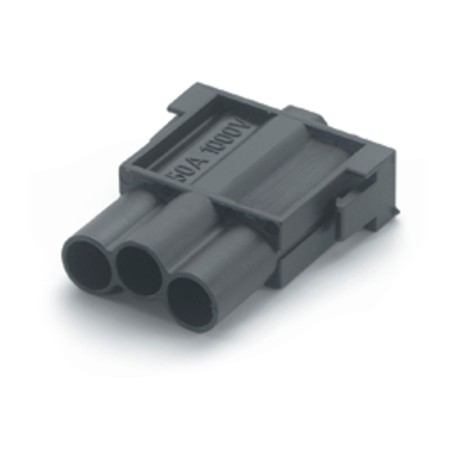

10399800 MCS 3 CM-HV STECKERMODUL (1000V 50A) LAPP MCS 3 CM-HV STECKERMODUL (1000V 50A)
10399800
10399800
MCS 3 CM-HV STECKERMODUL (1000V 50A)
LAPP
10 Pcs.
MCS 3 CM-HV MALE MODULE (1000V 50A)
EPIC® MC module: HC3
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The power and signal module can be combined in one housing and is suitable for printing presses and investment construction.
Very high current transfer in a small space
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Application range
- Plant engineering
- Printing machines
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 1000 V
Rated current (A)
- 50 A
Pollution degree
- 3
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 3
Termination methods
- Crimp termination: 1.5 - 10 mm²
Cycle of mechanical operation
- 100
VDE-tested
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
