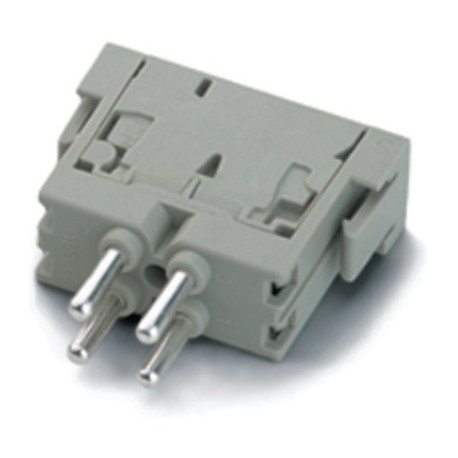

10399700 MCB 4 F FEMALE MODULE LAPP MCB 4 F FEMALE MODULE
10399700
10399700
MCB 4 F FEMALE MODULE
LAPP
10 Pcs.
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 10399700 MCB 4 F FEMALE MODULE LAPP MCB 4 F FEMALE MODULE is a modular connector female insert featuring spring-clamp technology for rapid wiring in control cabinets. Cage clamp modules provide vibration-resistant connections for signal and power lines within modular industrial connector frames. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cage clamp termination: 0.5 - 2.5 mm²
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
More info
▲The module with spring-type terminal ensures fast connection with spring pin and has 4 contacts. It can be used, for example, in printing presses.
Fast connection by cage spring
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Application range
- Plant engineering
- Printing machines
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 400 V
Rated current (A)
- 14 A
Pollution degree
- 3
Contact resistance
- 1.5 - 4 mohm
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 4
Termination methods
- Cage clamp termination: 0.5 - 2.5 mm²
Stripping length (mm)
- 10
Cycle of mechanical operation
- 100
Temperature range
- -40°C to +100°C, short-term up to +125°C
