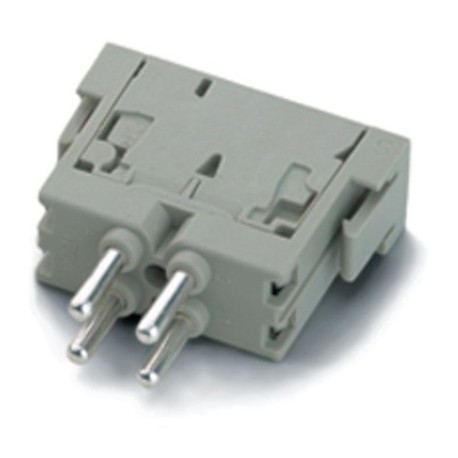

LAPP 10399600 10399600 MCS 4 F STECKERMODUL LAPP MCS 4 F MALE MODULE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10399600 MCS 4 F STECKERMODUL LAPP MCS 4 F MALE MODULE

10399600

10399600

MCS 4 F STECKERMODUL

LAPP

10 Pcs.

MCS 4 F MALE MODULE EPIC® MC Module: Cage clamp 4pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a Lapp 10399600 MCS 4 F male module, this connector insert utilizes spring-clamp technology for rapid wiring inside industrial enclosures. Modular terminal blocks speed up installation times in control cabinets and machine wiring applications where secure vibration-resistant joints are required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cage clamp termination: 0.5 - 2.5 mm²
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

The module with spring-type terminal ensures fast connection with spring pin and has 4 contacts. It can be used, for example, in printing presses.

Fast connection by cage spring

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 400 V

Rated current (A)

  • 14 A

Pollution degree

  • 3

Contact resistance

  • 1.5 - 4 mohm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 4

Termination methods

  • Cage clamp termination: 0.5 - 2.5 mm²

Stripping length (mm)

  • 10

Cycle of mechanical operation

  • 100

Temperature range

  • -40°C to +100°C, short-term up to +125°C
