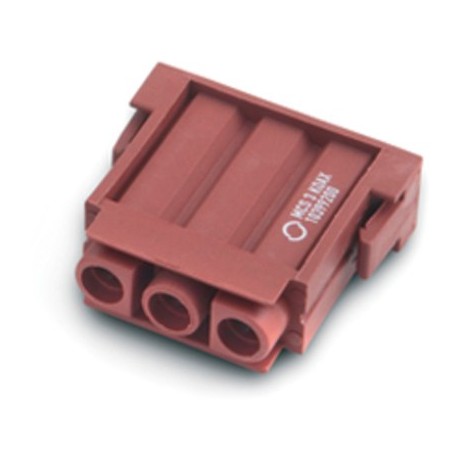

LAPP 10399300 10399300 EPIC MCB 3 KOAX LAPP EPIC MCB 3 KOAX FEMALE MODULE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10399300 EPIC MCB 3 KOAX LAPP EPIC MCB 3 KOAX FEMALE MODULE

10399300

10399300

EPIC MCB 3 KOAX

LAPP

10 Pcs.

EPIC MCB 3 KOAX FEMALE MODULE EPIC® MC Module: Koax 3pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The three-pole coaxial module is suitable for transmission of RGB video signal in a single module. It combines more functions in single connector, which therefore makes it more flexible.

RGB video signal transmission in one module

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Light & sound technology
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 250 V

Pollution degree

  • 3

Contact resistance

  • < 2,7 mOhm

Contacts

  • Copper alloy, gold-plated

Number of contacts

  • 3

Termination methods

  • Solder termination: var. coax cables

Cycle of mechanical operation

  • 100

Temperature range

  • -40°C to +100°C, short-term up to +125°C
