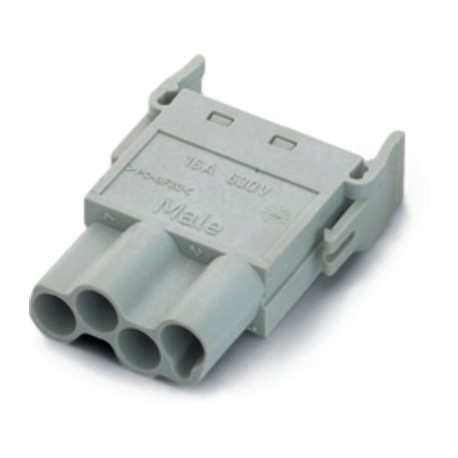

LAPP 10399000 10399000 EPIC MCS 4 CM LAPP EPIC MCS 4 CM MALE MODULE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10399000 EPIC MCS 4 CM LAPP EPIC MCS 4 CM MALE MODULE

10399000

10399000

EPIC MCS 4 CM

LAPP

10 Pcs.

EPIC MCS 4 CM MALE MODULE EPIC® MC Module: HE 4pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Packaged as a Lapp 10399000 EPIC MCS 4 CM male module, this component provides reliable multi-pin signal connectivity inside modular heavy-duty industrial connectors. Modular connector inserts let engineers mix signal, data, and power lines within a single standardized frame for streamlined panel building. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Crimp termination: 0.5 - 4.0 mm²
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 630 V

Rated current (A)

  • 25 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 4

Termination methods

  • Crimp termination: 0.5 - 4.0 mm²

Cycle of mechanical operation

  • 100

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
