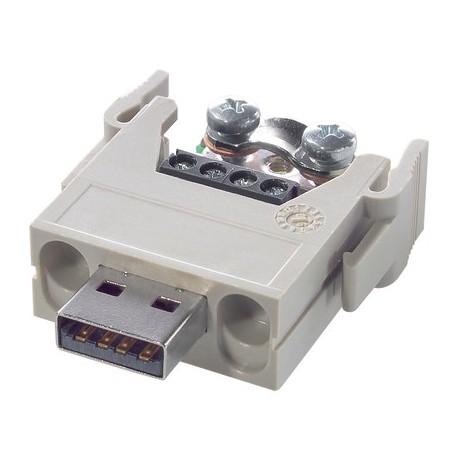

LAPP 10390700 10390700 RECEPTACLE 4+ SHIELD LAPP Universal Bus Module Receptacle 4+ Shiel View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10390700 RECEPTACLE 4+ SHIELD LAPP Universal Bus Module Receptacle 4+ Shiel

10390700

10390700

RECEPTACLE 4+ SHIELD

LAPP

5 Pcs.

Universal Bus Module Receptacle 4+ Shiel EPIC® MC Module: Universal Bus

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered as a Lapp 10390700 universal bus module receptacle, this shielded data component terminates communication lines within industrial connector frames. Shielded modular inserts safeguard network integrity by preventing EMI signal degradation across complex manufacturing control architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screw termination: 0.08 - 1.5 mm²
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Light & sound technology
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 30 V

Rated current (A)

  • 1 A

Pollution degree

  • 3

Contacts

  • Copper alloy, gold-plated

Number of contacts

  • 4 + shield

Termination methods

  • Screw termination: 0.08 - 1.5 mm²

Cycle of mechanical operation

  • 100

Temperature range

  • -20 °C ... +85 °C
