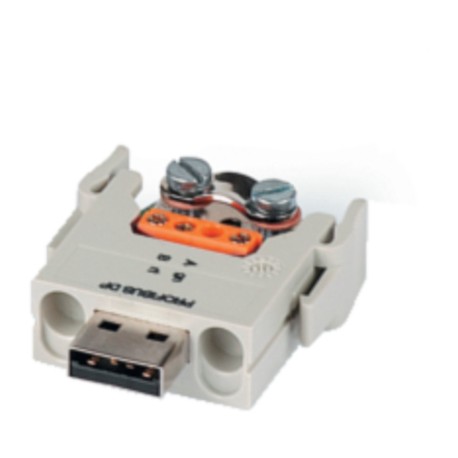

LAPP 10390500 10390500 MCB 2 PDP T STECKDOSENMODUL PROFIBUS LAPP MCB 2 PDP T FEMALE MODULE PROFIBUS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10390500 MCB 2 PDP T STECKDOSENMODUL PROFIBUS LAPP MCB 2 PDP T FEMALE MODULE PROFIBUS

10390500

10390500

MCB 2 PDP T STECKDOSENMODUL PROFIBUS

LAPP

5 Pcs.

MCB 2 PDP T FEMALE MODULE PROFIBUS EPIC® MC Module: PROFIBUS DP

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Specified as a Lapp 10390500 MCB 2 PDP T female module, this Profibus socket insert connects fieldbus lines inside modular industrial connector blocks. Bus-compatible connector modules ensure seamless data exchange across automated production floors linking programmable controllers and peripheral units. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screw termination: for Profibus cable
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

PROFIBUS DP module is suitable for continuous bus operation and has screw termination, which ensures easy installation.

  • Profibus DP module for uniterruptible fieldbus operation
  • Lever for rapid removal of the module

Benefits

  • Uninterrupible fieldbus operartion when pulling the connector
  • Transmission rate up to 12 MBit/s
  • Easy assembly by screw connection
  • Shielding connection by strain relief

Application range

  • Plant engineering
  • Light & sound technology
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 30 V

Rated current (A)

  • 1 A

Pollution degree

  • 3

Contacts

  • Copper alloy, gold-plated

Number of contacts

  • 2 / 4 + shield

Termination methods

  • Screw termination: for Profibus cable

Cycle of mechanical operation

  • 100

Temperature range

  • -20 °C ... +85 °C
