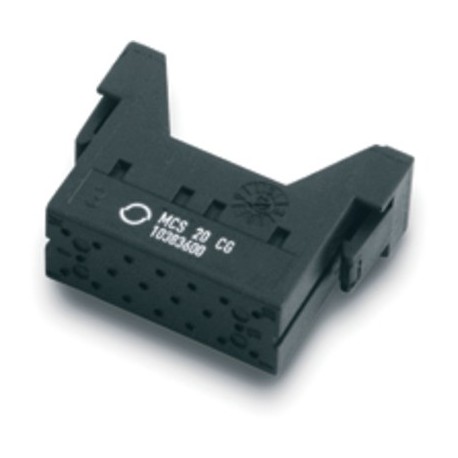

LAPP 10383600 10383600 EPIC MCS 20 CG LAPP MCS 20 CG MALE MODULE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10383600 EPIC MCS 20 CG LAPP MCS 20 CG MALE MODULE

10383600

10383600

EPIC MCS 20 CG

LAPP

10 Pcs.

MCS 20 CG MALE MODULE EPIC® MC Module: 20pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An EPIC MCS 20 CG LAPP MCS 20 CG MALE MODULE functions as a specialized modular industrial connector insert designed to integrate signal or power lines within robust heavy-duty setups. These components provide secure contact arrangements inside machinery, control panels, and automation infrastructure where quick connection and disconnection of complex wiring groups are necessary. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Crimp termination: 0.08 - 0.56 mm²
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

The power module with 20 contacts is able to withstand a temperature of approximately +125 degrees for a short period and is suitable, for example, in control systems.

  • Suitable for processing with contacts on reel
  • for automated production with crimping machine

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 100 V

Rated current (A)

  • 4 A

Pollution degree

  • 3

Contacts

  • Copper alloy, gold-plated

Number of contacts

  • 20

Termination methods

  • Crimp termination: 0.08 - 0.56 mm²

Cycle of mechanical operation

  • 50

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
