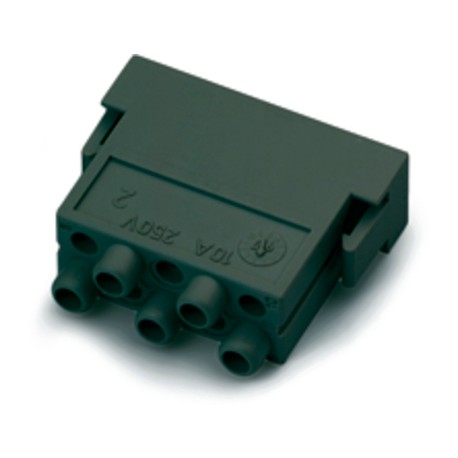

10383500 EPIC MCB 10 CG LAPP MCB 10 CG FEMALE MODULE
10383500
10383500
EPIC MCB 10 CG
LAPP
10 Pcs.
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 10383500 EPIC MCB 10 CG LAPP MCB 10 CG FEMALE MODULE is a modular connector female module designed to facilitate secure circuit interconnections within industrial cabinets and machinery frames. Inserts of this nature fit inside heavy-duty multi-pin connector housings to combine power, control signals, and data transmission into a single robust multi-line interface for complex automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Crimp termination: 0.14 - 2.5 mm²
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
More info
▲The 10-pole module with pressed contacts ensures the high flexibility connector, thanks to multiple functions. It can be used, for example, in investment construction.
- Suitable for processing with contacts on reel
- for automated production with crimping machine
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Application range
- Plant engineering
- Printing machines
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- 250 V
Rated current (A)
- max. 10 A
Pollution degree
- 3
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver/gold-plated
Number of contacts
- 10
Termination methods
- Crimp termination: 0.14 - 2.5 mm²
Cycle of mechanical operation
- 100
VDE-tested
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
