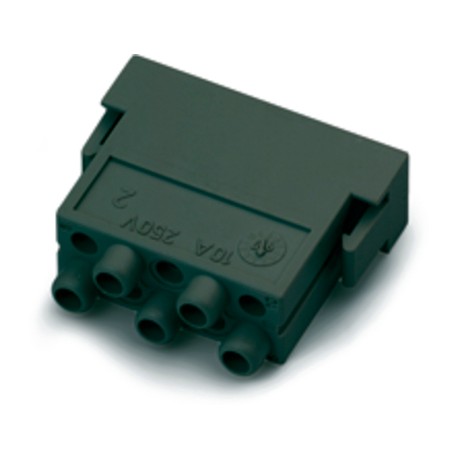

LAPP 10383400 10383400 EPIC MCS 10 CG LAPP MCS 10 CG MALE MODULE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10383400 EPIC MCS 10 CG LAPP MCS 10 CG MALE MODULE

10383400

10383400

EPIC MCS 10 CG

LAPP

10 Pcs.

MCS 10 CG MALE MODULE EPIC® MC Module: 10pole stamped

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 10383400 EPIC MCS 10 CG LAPP MCS 10 CG MALE MODULE is a modular connector male module used to build structured multi-pin pluggable wiring configurations in heavy factory environments. These plug inserts lock into industrial hoods and housings, allowing engineers to bundle various lines into a single modular multi-conductor interface for swift machine assembly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Crimp termination: 0.14 - 2.5 mm²
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

The 10-pole module with pressed contacts ensures the high flexibility connector, thanks to multiple functions. It can be used, for example, in investment construction.

  • Suitable for processing with contacts on reel
  • for automated production with crimping machine

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 250 V

Rated current (A)

  • max. 10 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 10

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
