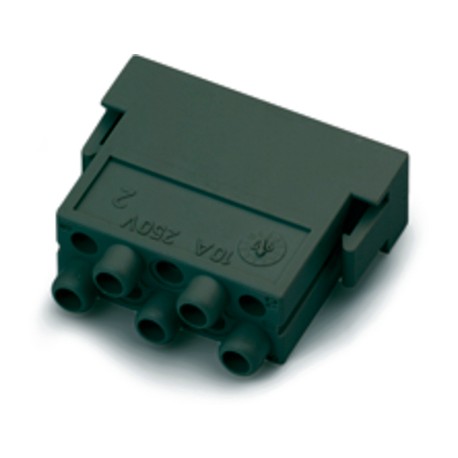

LAPP 10382500 10382500 EPIC MCB 10 CM LAPP EPIC MCB 10 CM (10) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10382500 EPIC MCB 10 CM LAPP EPIC MCB 10 CM (10)

10382500

10382500

EPIC MCB 10 CM

LAPP

10 Pcs.

EPIC MCB 10 CM (10) EPIC® MC Module: 10pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The 10-pole module can be selected with female or male pins and used, for example, in printing presses and in investment construction.

Ideal for data transmission

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • IEC: 250 V
    UL: 600 V
    CSA: 600 V

Rated current (A)

  • max. 10 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver/gold-plated

Number of contacts

  • 10

Termination methods

  • Crimp termination: 0.14 - 2.5 mm²

Cycle of mechanical operation

  • 100

VDE-tested

Temperature range

  • -40°C to +100°C, short-term up to +125°C
