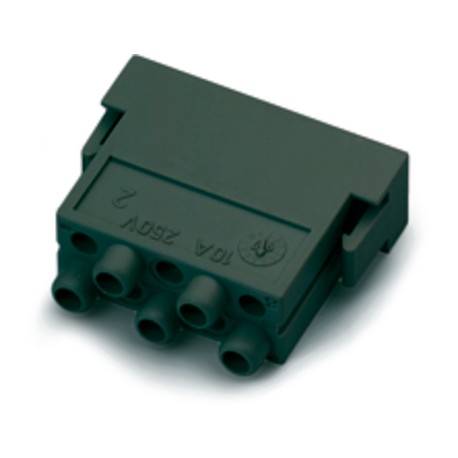

10382400 EPIC MCS 10 CM LAPP MCS 10 CM MALE MODULE
10382400
10382400
EPIC MCS 10 CM
LAPP
10 Pcs.
Connectors > Modular connector (industrial connector)
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed as a Lapp 10382400 MCS 10 CM male module, this electrical insert organizes multiple control lines within heavy-duty industrial connectors. Modular multi-pin blocks give panel builders the versatility to group signal circuits efficiently inside standardized protective hoods and bases. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- IEC: 250 V UL: 600 V CSA: 600 V
- Crimp termination: 0.14 - 2.5 mm²
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
More info
▲The 10-pole module can be selected with female or male pins and used, for example, in printing presses and in investment construction.
Ideal for data transmission
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Application range
- Plant engineering
- Printing machines
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002641
- ETIM 5.0 Class-Description: Modular connector (industrial connector)
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002641
- ETIM 6.0 Class-Description: Modular connector (industrial connector)
Rated voltage (V)
- IEC: 250 V
UL: 600 V
CSA: 600 V
Rated current (A)
- max. 10 A
Pollution degree
- 3
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver/gold-plated
Number of contacts
- 10
Termination methods
- Crimp termination: 0.14 - 2.5 mm²
Cycle of mechanical operation
- 100
VDE-tested
Temperature range
- -40°C to +100°C, short-term up to +125°C
