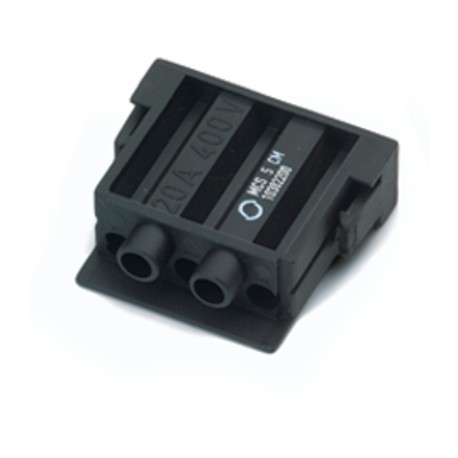

LAPP 10382300 10382300 EPIC MCB 5 CM LAPP MCB 5 CM FEMALE MODULE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10382300 EPIC MCB 5 CM LAPP MCB 5 CM FEMALE MODULE

10382300

10382300

EPIC MCB 5 CM

LAPP

10 Pcs.

MCB 5 CM FEMALE MODULE EPIC® MC Module: 5pole

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Specified as a Lapp 10382300 EPIC MCB 5 CM female module, this industrial connector insert provides secure multi-pole circuit connections inside control panels. Modular contact inserts deliver flexible configuration choices for machine builders routing control signals and auxiliary power through robust housings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Crimp termination: 0.5 - 4.0 mm²
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

One housing can combine signal and power modules and therefore ensures high flexibility. This is suitable for control systems.

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 400 V

Rated current (A)

  • 20 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 5

Termination methods

  • Crimp termination: 0.5 - 4.0 mm²

Cycle of mechanical operation

  • 100

VDE-tested

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
