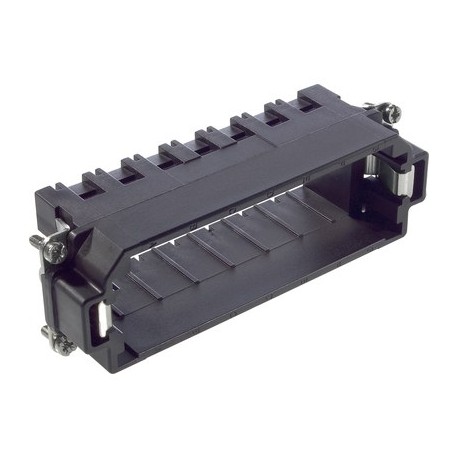

10381600 MCR 24 S RAHMEN F.STECKERMODULE A-G LAPP MCR 24 S FRAME F. MALE MODULES A-G
10381600
10381600
MCR 24 S RAHMEN F.STECKERMODULE A-G
LAPP
5 Pcs.
Connectors > Fixing element for industrial connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This robust fixing frame holds male module inserts securely in high-capacity industrial connector configurations, ensuring proper mating alignment. Industrial engineers rely on these frames to construct versatile, multi-signal interface blocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Certified production control: VDE-REG. no. A870
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC002310
- ETIM 5.0 Class-Description: Fixing frame industrial connectors
- ETIM 6.0 Class-ID: EC002310
- ETIM 6.0 Class-Description: Fixing frame industrial connectors
More info
▲The frame system for rectangular connectors enables quite easy installation in connector and it is suitable in investment construction.
- Frame system for modules
- Various functions can be used together in one connector
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Product features
- The MCR "male" frame version is designed for use with modules with male contacts; the "female" version is designed for use with modules with female contacts
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002310
- ETIM 5.0 Class-Description: Fixing frame industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002310
- ETIM 6.0 Class-Description: Fixing frame industrial connectors
VDE-tested
- Certified production control: VDE-REG. no. A870
- UL-tested:
UL File Number: E75770
