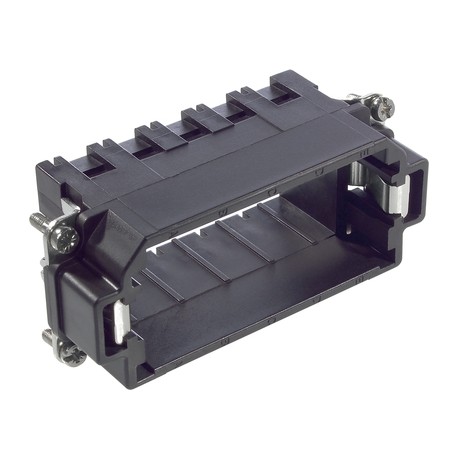

LAPP 10381500 10381500 MCR 16 B RAHMEN F.STECKDOSENMODULE A-E LAPP MCR 16 B FRAME F. FEMALE MODULES A-E View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10381500 MCR 16 B RAHMEN F.STECKDOSENMODULE A-E LAPP MCR 16 B FRAME F. FEMALE MODULES A-E

10381500

10381500

MCR 16 B RAHMEN F.STECKDOSENMODULE A-E

LAPP

5 Pcs.

MCR 16 B FRAME F. FEMALE MODULES A-E EPIC® MCR 16

Connectors > Fixing element for industrial connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A fixing frame industrial connector component, specifically the Lapp 10381500 MCR 16 B RAHMEN F.STECKDOSENMODULE A-E, provides structural support for modular connector arrangements in complex automation wiring setups. These frames securely house insert modules to protect sensitive signal and power interfaces within heavy industrial enclosures. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Certified production control: VDE-REG. no. A870
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC002310
  • ETIM 5.0 Class-Description: Fixing frame industrial connectors
  • ETIM 6.0 Class-ID: EC002310
  • ETIM 6.0 Class-Description: Fixing frame industrial connectors

More info

▲

The frame systems enable to use various modules together in one housing, only the combination of pin frame and male pin contact.

  • Frame system for modules
  • Various functions can be used together in one connector

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Product features

  • The MCR "male" frame version is designed for use with modules with male contacts; the "female" version is designed for use with modules with female contacts

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002310
  • ETIM 5.0 Class-Description: Fixing frame industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002310
  • ETIM 6.0 Class-Description: Fixing frame industrial connectors

VDE-tested

  • Certified production control: VDE-REG. no. A870
  • UL-tested:
    UL File Number: E75770
