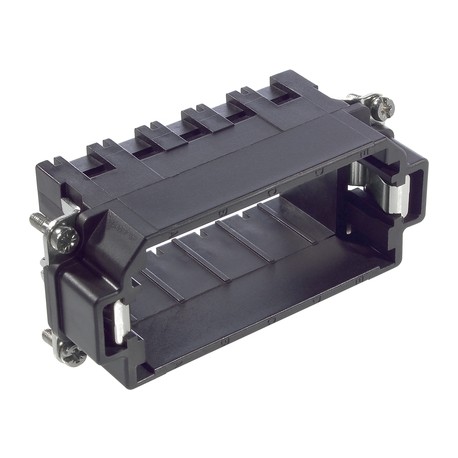

10381400 MCR 16 S RAHMEN F.STECKERMODULE A-E LAPP MCR 16 S FRAME F. MALE MODULES A-E
10381400
10381400
MCR 16 S RAHMEN F.STECKERMODULE A-E
LAPP
5 Pcs.
Connectors > Fixing element for industrial connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to serve as a fixing frame, this component securely positions male insert modules within heavy-duty rectangular connector housings. Proper frame selection guarantees stable mating cycles and reliable circuit separation in control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Certified production control: VDE-REG. no. A870
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC002310
- ETIM 5.0 Class-Description: Fixing frame industrial connectors
- ETIM 6.0 Class-ID: EC002310
- ETIM 6.0 Class-Description: Fixing frame industrial connectors
More info
▲The frame systems enable to use various modules together in one housing, only the combination of pin frame and male pin contact.
- Frame system for modules
- Various functions can be used together in one connector
Benefits
- The mix of different functions in one plug guarantees high flexibility
- Assembly of individual connectors, suitable for different applications
Product features
- The MCR "male" frame version is designed for use with modules with male contacts; the "female" version is designed for use with modules with female contacts
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002310
- ETIM 5.0 Class-Description: Fixing frame industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002310
- ETIM 6.0 Class-Description: Fixing frame industrial connectors
VDE-tested
- Certified production control: VDE-REG. no. A870
- UL-tested:
UL File Number: E75770
