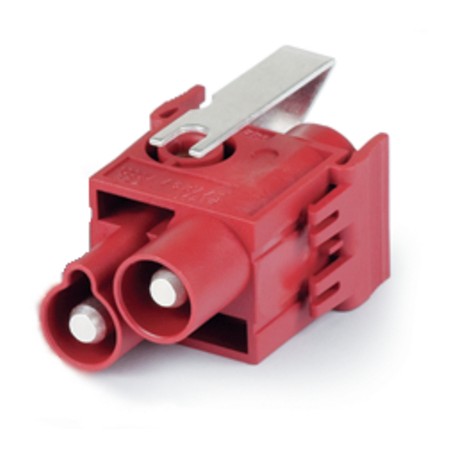

EPIC MCB-HC 1+PE B FEMALE MODULE EPIC® MC module: HC1+PE

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 10345600 EPIC MCB-HC 1+PE B LAPP EPIC MCB-HC 1+PE B FEMALE MODULE serves as a high-current modular connector female insert with an integrated protective earth contact for industrial power circuits. These heavy-duty modules provide safe grounding and reliable power transmission in demanding automation environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 1000 V UL: 600 V CSA: 600 V
  • Screw termination: 10 - 25 mm²
  • Certified production control: VDE-REG. no. A870
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

More info

▲

The power module with screw termination and reinforced protective grounding is suitable for use in printing presses and control systems.

  • High power module with screw connection and reinforced protection earth
  • Lever for rapid removal of the module

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Screw connection up to 25mm² for easy assembly without speciall tools
  • Separate protective conductor for increased safety

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • IEC: 1000 V
    UL: 600 V
    CSA: 600 V

Rated current (A)

  • 82 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 1 + PE

Termination methods

  • Screw termination: 10 - 25 mm²

Stripping length (mm)

  • 15

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no. A870
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
