LAPP 10344300 10344300 EPIC MCS 8 RJ45 LAPP EPIC MCS 8 RJ45 INDUSTRIAL ETHERNET View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10344300 EPIC MCS 8 RJ45 LAPP EPIC MCS 8 RJ45 INDUSTRIAL ETHERNET

10344300

10344300

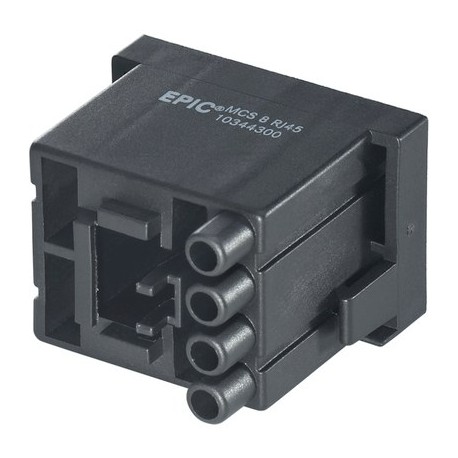

EPIC MCS 8 RJ45

LAPP

5 Pcs.

EPIC MCS 8 RJ45 INDUSTRIAL ETHERNET EPIC® MC Module: RJ45

Connectors > Modular connector (industrial connector)
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a Lapp 10344300 EPIC MCS 8 RJ45 industrial Ethernet module, this hybrid insert combines data and power transmission in one frame. Hybrid modular connectors allow technicians to streamline machine cabling by integrating Ethernet communication channels alongside auxiliary power lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Power: crimp termination: 0.14 - 2.5 mm², Data: IDC/piercing termination: Cat5, AWG 24-26
  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)
  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Sensor-actuator connector chassis

More info

▲

The power module has 4 power and 8 data contacts and can be used in investment construction and control systems.

CAT.5-Performance

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • max. 600 V/max. 125 V

Rated current (A)

  • max. 10 A/max. 1.5 A

Pollution degree

  • 3

Contacts

  • Copper alloy, gold-plated

Number of contacts

  • 4 Power + 8 Data

Termination methods

  • Power: crimp termination: 0.14 - 2.5 mm², Data: IDC/piercing termination: Cat5, AWG 24-26

Cycle of mechanical operation

  • 100

Temperature range

  • -20 °C ... +85 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
