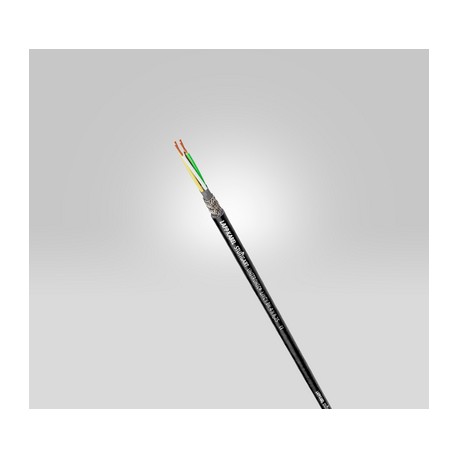

1030552 LAPP UNITRONIC LIYCY 5X1.5 BK
1030552
1030552
LAPP
1 m.
Automation > Shield connection clamp
flexible data cable transfer from special cable
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Lapp 1030552 control cable is widely specified for signal transmission, data communication, and automation control loops where electromagnetic interference protection is required. Shielded multi-conductor cables are typically routed inside machinery, control cabinets, and instrumentation panels to maintain signal integrity in industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- The classic for multiple applications: in black
- CPR: Registration number and classification in www.lappkabel.com/cpr
- PVC outer shell Outer shell color: black
- C/C: approx. 120 nF/km
- Driver/Display: approx. 160 nF/km
- Braiding, fine thread 0.34 mm²: 7 threads
- Occasional flexible use: 15 x outside diameter
- Fixed installation: 6 x outer diameter
- Occasional flexible use: –5°C to +70°C
- Fixed installation: -40°C to +80°C
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class Description: Control Cable
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control Line
More info
▲UNITRONIC data cable® PVC, shielded, DIN 47100, in machine and plant construction, instrumentation, control and regulation, black cover/UV resistant/outdoor application
- The classic for multiple applications: in black
- UV resistant / weather use
- CPR: Registration number and classification in www.lappkabel.com/cpr
proceeds
- General shielding minimizes electrical interference
- Multifunctional cable
- Outdoor use according to European standards
Scope of use
- Shielded cables of small sections are used in computer systems, electronic instrumentation, office equipment, scales, etc.
- Dry and wet interiors.
- Outdoor use according to European standards
Product features
- Non-flame propagator, according to IEC 60332-1-2
- Resistant to UV radiation according to EN 50525-1
- Ozone resistant
Reference Standards / Approvals
- Based on VDE 0812
Product composition
- Braiding of fine/multi-thread filaments (0.34 mm²) of bare copper threads
- Conductor insulation made of PVC
- Tinned copper braid screen
- PVC outer shell
Outer shell color: black
ETS Classification 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class Description: Control Cable
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control Line
Driver Identification Code
- DIN 47100, no repetition of colors (Table T9 of the appendix)
Mutual capacity
- C/C: approx. 120 nF/km
Driver/Display: approx. 160 nF/km
Inductance
- Approx. 0.65 mH/km
Driver training
- Braiding, fine thread
0.34 mm²: 7 threads
Minimum radius of curvature
- Occasional flexible use: 15 x outside diameter
- Fixed installation: 6 x outer diameter
Temperature range
- Occasional flexible use: –5°C to +70°C
- Fixed installation: -40°C to +80°C
